Uninterruptible Power Supplies (UPS)

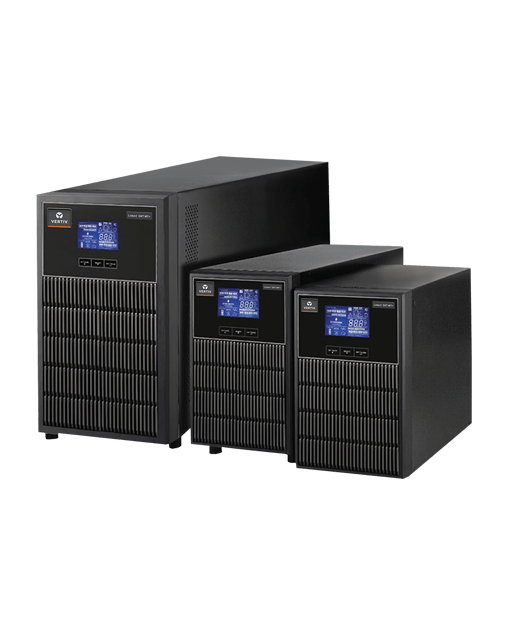

Liebert GXT MT+ 1/2/3KVA

Uninterruptible Power Supplies (UPS)

Liebert GXT MT+ 1/2/3KVA

Liebert GXT MT+ Series systems is true double conversion online UPS systems designed to provide with a capacity of 1/2/3 kVA. Liebert GXT MT+ units feature total isolation of the load from the mains - isolating input and output sections, and making the systems ideal for Data Networks / Small Data Centers/VOIP Applications application. The units support hot standby configuration, making them suited for critical applications like banks. Best Suited For

  • Education
  • Data Center/Colocation/Hosting
  • Construction and Engineering
  • Government
  • Healthcare
  • Manufacturing

Downloads

Features

  • IGBT Based Rectifier
  • True Online Double Conversion with DSP Control Technology for High Performance and Reliability.
  • New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and trouble shooting.
  • Double Conversion Efficiency upto 90%.
  • Active Input Power Factor Correction 0.99.
  • 0.8 Output Power Factor.
  • Wide Input Voltage window (110 - 280 Vac) for Indian Environmental Condition and for Optimized Battery Performance.
  • Configurable Output Voltage (200/208/220/230/240 Vac.)
  • Generator Compatible with Wide Input Frequency Range (40 Hz-70 Hz).
  • 4 Stage Extendable Charging Design for optimized Battery Performance.
  • Adjustable Battery Charging Current 1/2/4/6 Amps according to Battery Capacity and Rating.
  • 50/60 Hz Automatic Frequency Converter Mode.
  • Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/Dry Contact/SNMP Card.
  • Inbuilt OVCD.

Specifications

Specifications per model

Models Power Rating Input Voltage Output Voltage
GXT MT + CX 1 kVA 1 kVA 230 Vac 208/220/230/240VAC
GXT MT + CX 2 kVA 2 kVA 230 Vac 208/220/230/240VAC
GXT MT + CX 3 kVA 3 kVA 230 Vac 208/220/230/240VAC
