Uninterruptible Power Supplies (UPS)

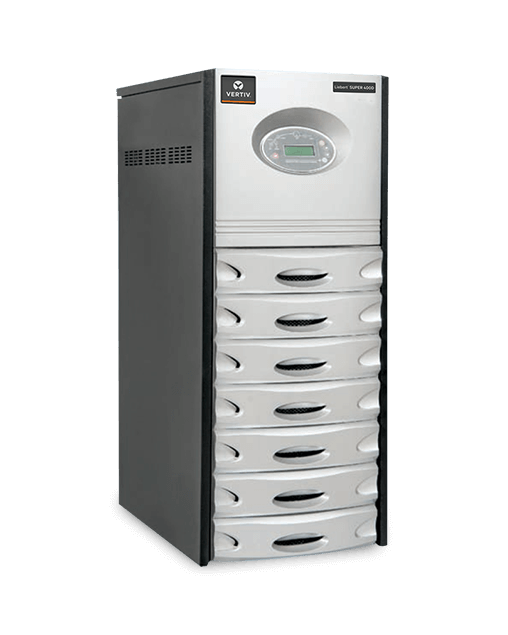

Liebert Super 400D 10/20 kVA

Uninterruptible Power Supplies (UPS)

Liebert Super 400D 10/20 kVA

The Liebert Super 400D is a true On-line sine wave UPS system that provides the user with clean computer grade power for continuous operation of his critical load, regardless of any disturbance on the upstream AC power.

Downloads

Features

  • IGBT based rectifier
  • 10,20 kVA Models
  • Full Digital Signal Processing using the latest DSP technology
  • Parallel operation for Redundancy
  • Wide Input Voltage Range
  • Low Input Current Harmonic Distortion of less than 5%
  • Unity Input Power Factor
  • High Overload and Short-Circuit
  • Capacities
  • Compatible with Engine Generators
  • High Reliability for Maximum
  • System Availability
  • Handles 3:1 Crest Factor Loads
  • Intelligent Battery Management
  • LCD Display and Mimic Panel for
  • Real-time information
  • Output Isolation between UPS and Critical Load
  • Temperature compensated Battery charging to enhance the Battery life Battery test facility
  • Inverter output short circuit protected
  • Rectifier output short circuit protected
  • Immune to Reverse phase sequence Auto retransfer facility
  • Alarms can be stored in the memory DSP and Dual microprocessor based system

Specifications

Specifications per model

Models Power Rating Input Voltage Output Voltage Height (in / mm) Width (in / mm) Depth (in / mm) Weight (lbs / kgs)
10 kVA 10 kVA 400/415 Vac 220/230/240 Vac 1 Phase / 1150 mm / 450 mm / 650 mm / 275 kg
20 kVA 20 kVA 400/415 Vac 220/230/240 Vac 1 Phase / 1150 mm / 450 mm / 650 mm / 275 kg
