Uninterruptible Power Supplies (UPS)

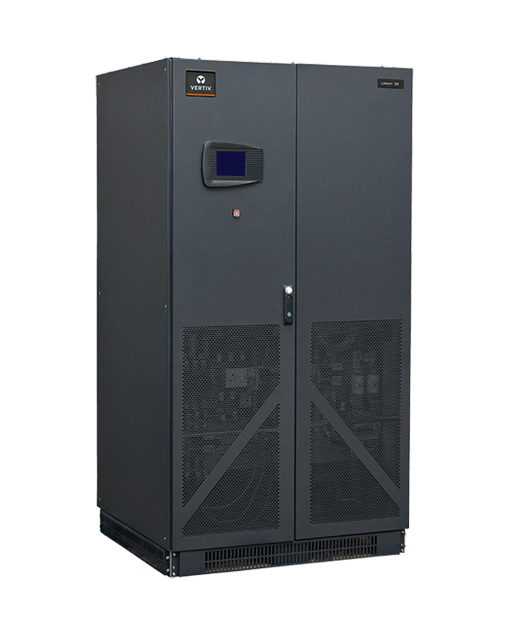

Liebert SX 60kVA - 200kVA

Uninterruptible Power Supplies (UPS)

Liebert SX 60kVA - 200kVA

Liebert SXTM features a full IGBT double conversion technology allowing it to provide extraordinary savings on installation and running costs, while at the same time providing first class load protection.

Downloads

Features

  • Output Power Factor 1
  • Output Power Factor diagram symmetrical respect to zero Permanent 100% kVA - no derating with any load (lagging or leading) Optimum space/power ratio
  • Full compatibility with static transfer switches Wide range of standard options including: Isolation transformer (integrated in UPS cabinet), System Bypass Switch and Synchronization Module (MBSM)

Specifications

Models Power Rating Input Voltage Output Voltage Height (in / mm) Width (in / mm) Depth (in / mm) Weight (lbs / kgs)
Liebert SX 60kVA 60kVA 400 (3 ph + N(1) 400 (380/415 Selectable, 3ph+N) / 1900 mm / 1900 mm / 900 mm / 400 kgs
Liebert SX 100kVA 100 400 (3 ph + N(1) 400 (380/415 Selectable, 3ph+N) / 1900 mm / 1200 mm / 900 mm / 530 kgs
Liebert SX 80kVA 80kVA 400 (3 ph + N(1) 400 (380/415 Selectable, 3ph+N) / 1900 mm / 1000 mm / 900 mm / 400 kgs
Liebert SX 120kVA 120kVA 400 (3 ph + N(1) 400 (380/415 Selectable, 3ph+N) / 1900 mm / 1200 mm / 900 mm / 530 kgs
Liebert SX 160kVA 160kVA 400 (3 ph + N(1) 400 (380/415 Selectable, 3ph+N) / 1900 mm / 1400 mm / 900 mm / 650 kgs
Liebert SX 200kVA 200kVA 400 (3 ph + N(1) 400 (380/415 Selectable, 3ph+N) / 1900 mm / 1400 mm / 900 mm / 700 kgs

Benefits

  • Zero impact on upstream equipment
  • Perfect compatibility with generators
  • Enhanced performance for specific unbalanced load conditions
  • Perfect load sharing for parallel configurations
  • Enhanced fault clearing capacity (up to 300% of the inverter nominal current)
  • Intelligent double conversion for maximum reliability and highest energy savings
